4K UHD 13

4K UHD 13

HD13 is a powerful HD/4K, double expanding side trailer with 62 square meters of internal space.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

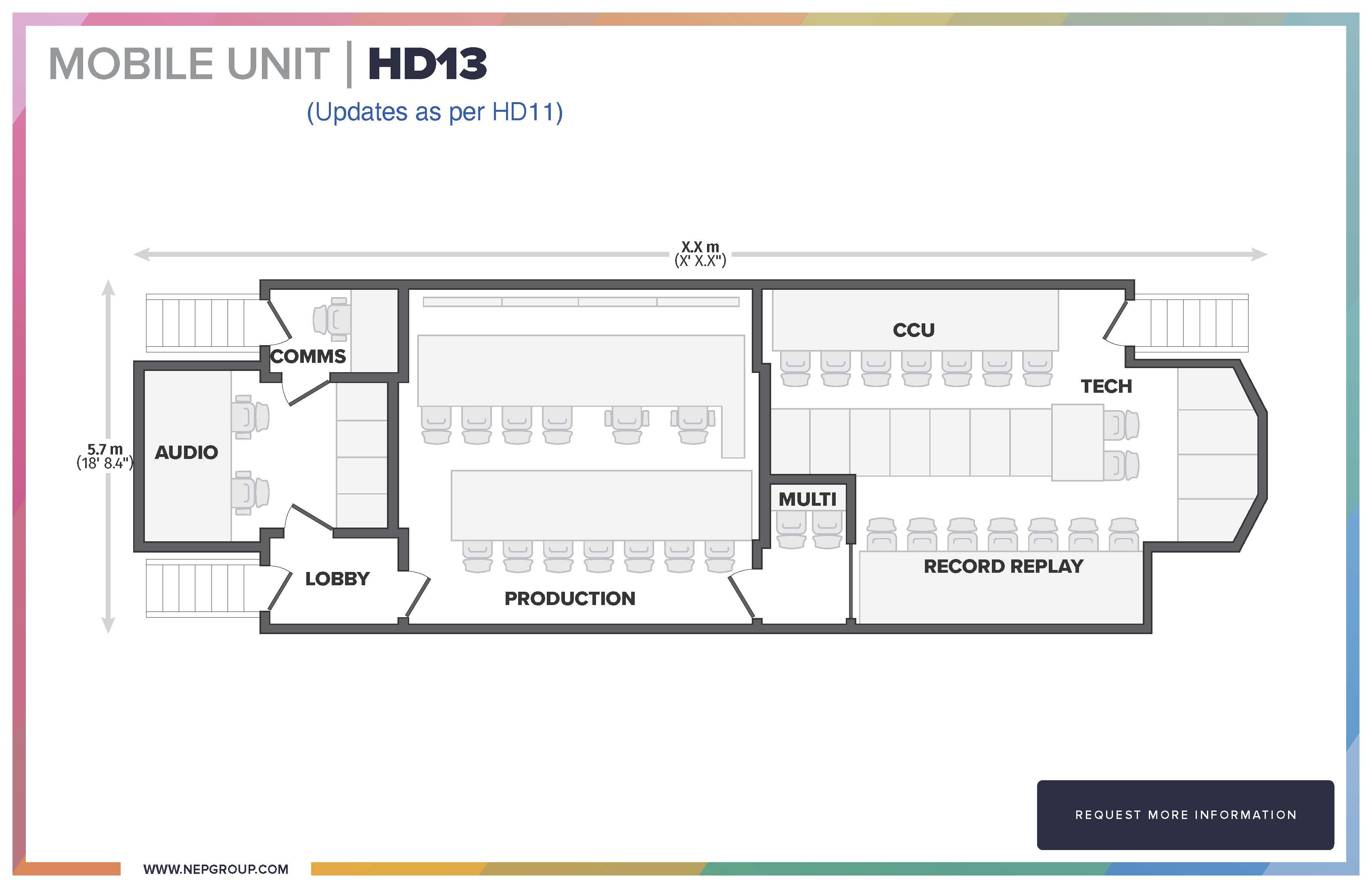

Vehicle-Specific Information

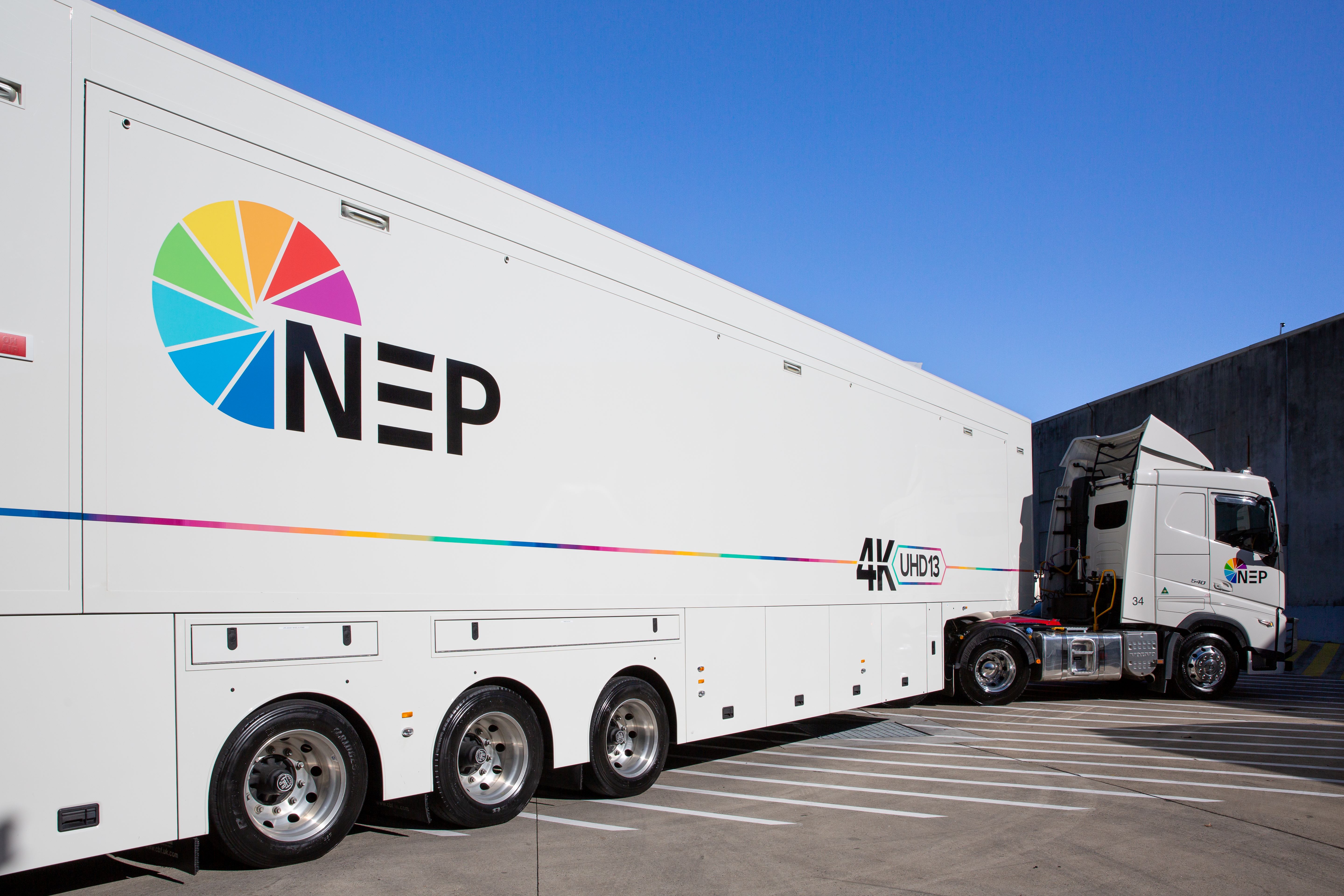

  • Dimensions: Truck - 15m long x 2.5m wide x 4.3m high; Expander - 12.1m long x 1.1m wide
Production
  • Sony 4 ME XVS8000 1080P 4K/IP Vision Switcher
  • 112 Inputs and 48 Outputs
Communications
  • Reidel Intercom System - 192 Ports
  • 8 Partyline Beltpack Systems
  • 4 UHF Duplex Base Stations
  • 2 Telephone Hybrid
Cameras
  • Up to 28 Cameras with 7 CCU Positions and TD
  • Expandable Sony Ethernet Camera Control
  • 8 Specialty Camera Positions with Expansion
Support Equipment
  • Imagine Router
  • HD video - 518 inputs x 544 outputs
  • Equipped with LAWO VSM Control & Monitoring System
  • ‍11 Multi Viewers, 32 x 6 each
Audio
  • LAWO Mc56 Mk2
  • 80 Faders, 6 layers
  • Over 672 DSP Channels
  • MADI Interfacing
  • Dallis - Fibre Remote Stage Box Interfacing
  • 1 Spot On Replay System
Record & Playback
  • Up to 10 EVS XT3 12 Channel 10 GB
  • 1 EVS X-File[3]
  • 1 EVS Xhub[3]
  • HD/DVD & USB Recorders

Features & Highlights

  • Sony XVS8000
