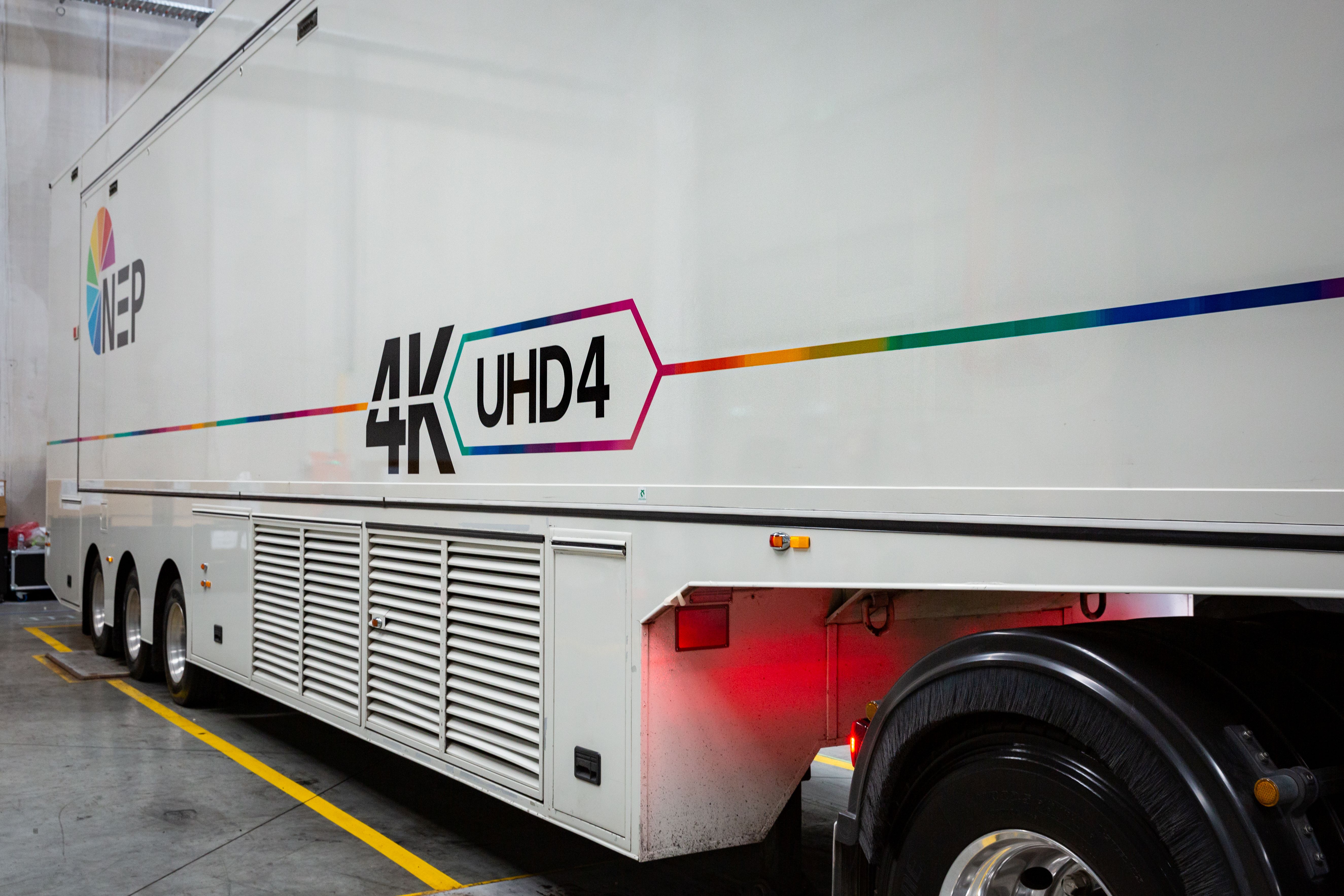

4K UHD4

4K UHD4

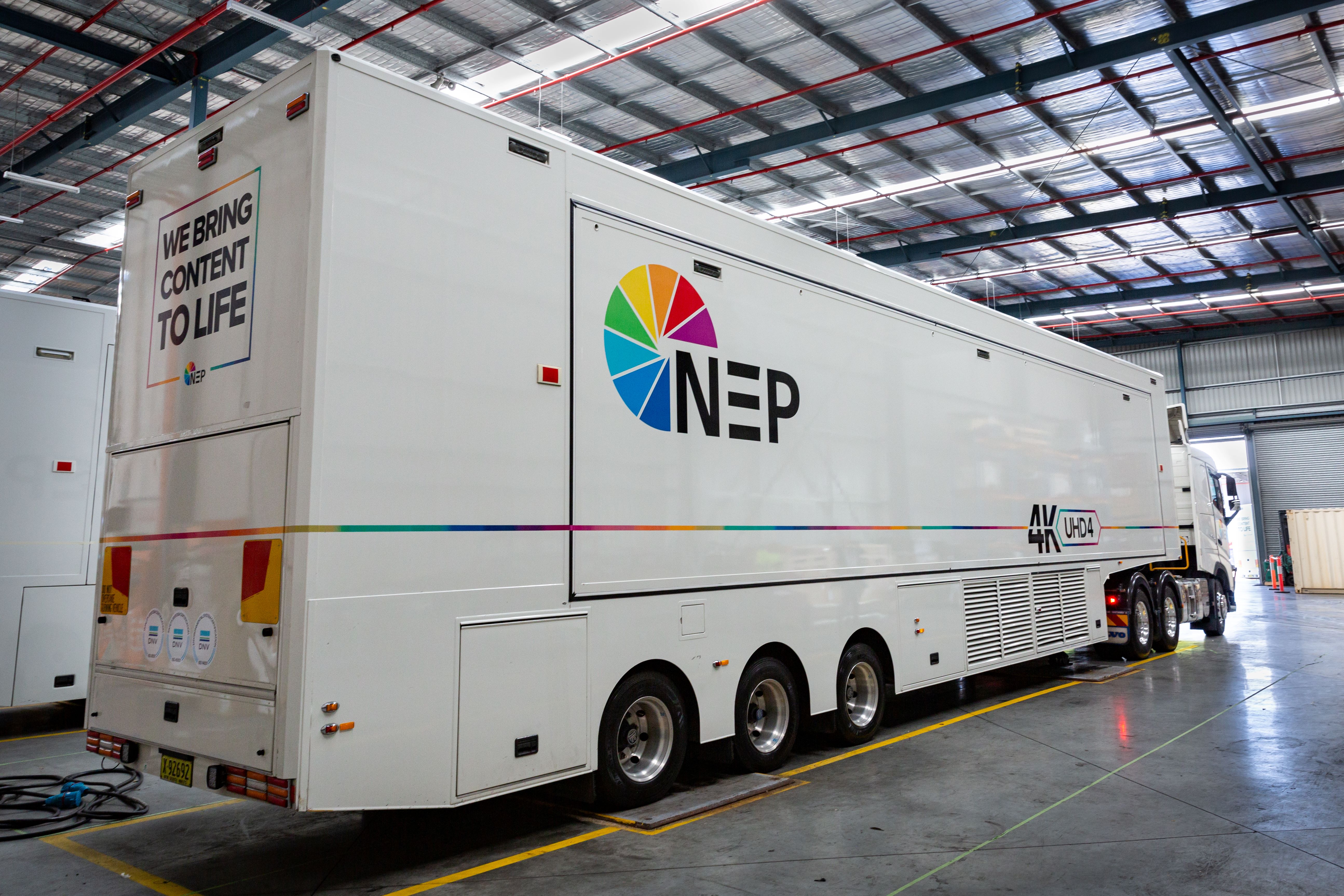

HD/4k. Purpose built double-expanding side semi-trailer with 62m2 of internal space, capable of fast single person deployment.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information
  • Dimensions: Truck - 15m long x 2.5m wide x 4.3m high; Expanders - 12m long x 1m wide
Production
  • Sony MVS8000x, 68 Inputs / 48 outputs, 4 ME
Communications
  • Adam Intercom System - 112 Ports
  • 4 Partyline Beltpack Systems
  • 6 UHF Duplex Base Stations
  • 2 Telephone Hybrids
Cameras
  • 18 Cameras with 6 CCU Positions, Plus TD and OB Manager
  • Expandable Sony Ethernet Camera Control
  • 8 Specialty Camera Positions with Ability to Expand
Support Equipment
  • Evertz Router
  • HD video - 288 inputs x 576 outputs
  • Equipped with LAWO VSM Control & Monitoring System
  • 16 Utility Frame Syncs/Processors
  • 8 x 16 Source Multi Viewers
Audio
  • Calrec Artemis Digital Audio Console
  • Bluefin 2 High Density Signal Processing
  • 340 Channels with full signal processing
  • 128 Mix busses for Group and Main Outputs
  • 64 Multi-track busses
  • 32 Aux busses
  • 50 Fader, A/B Layers
  • 680 DSP Channels
  • Hydra 2 Fibre Remote Stage Box Interfacing
  • MADI Interfacing
Record & Playback
  • Up to 10 EVS/VTRs
  • 6 HDD/DVD Recorders
Support Equip
  • 8 x 16 Source Multi Viewers
HD4 Floor Plan
